Quantum States (quanguru.QuantumToolbox.states)#

Contains methods to create states, such as ket, bra, densityMatrix, superpositions, etc.

Functions#

basis(dimension, state[, sparse])

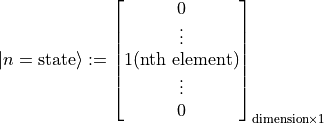

Creates a ket state \(|n=\textrm{state}\rangle := \begin{bmatrix} 0 \\ \vdots \\ 1 \textrm{(nth element)} \\ \vdots \\ 0 \end{bmatrix}_{\textrm{dimension}\times 1}\) for a given dimension with 1 (unit population) at a given row.

basisBra(dimension, state[, sparse])

Creates a bra state \(\langle n| := |n\rangle^{T}\) for a given dimension with 1 (unit population) at a given column.

zerosKet(dimension[, sparse])

Creates a column matrix (ket) with all elements zero.

zerosMat(dimension[, sparse])

Creates a square matrix with all elements zero.

completeBasis(dimension[, sparse])

Creates a complete basis of ket states \(\{|n\rangle\}\), st \(\sum_n|n\rangle\langle n| = \hat{\mathbb{I}}\).

superPos(dimension, excitations[, ...])

Creates a superposition ket state in various ways.

densityMatrix(ket[, probability])

Computes the density matrix for both pure and mixed states.

normalise(state)

Function to normalise any state (ket or density matrix).

compositeState(dimensions, excitations[, sparse])

Function to create composite ket states.

completeBasisMat([dimension, compKetBase, ...])

Creates a set of density matrices \(\{|n\rangle\langle n|\}\) st \(\sum_n|n\rangle\langle n| = \hat{\mathbb{I}}\) for a given dimension or convert a ket basis \(\{|n\rangle\}\) to density matrix.

weightedSum(summands[, weights])

Weighted sum \(\sum_{x}w_{x}x\) of given list of summands \(\{x\}\) and weights \(\{w_{x}\}\).

mat2Vec(denMat)

Converts density matrix into density vector (used in super-operator representation).

vec2Mat(vec)

Converts density vector into density matrix.

BellStates([bs, sparse])

Creates a Bell state \(\begin{cases} |\Phi^{+}\rangle := \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle) \\ |\Phi^{+}\rangle := \frac{1}{\sqrt{2}}(|00\rangle - |11\rangle) \\ |\Psi^{-}\rangle := \frac{1}{\sqrt{2}}(|01\rangle + |10\rangle) \\ |\Psi^{+}\rangle := \frac{1}{\sqrt{2}}(|01\rangle - |10\rangle) \\ \end{cases}\), where \(|ab\rangle := |a\rangle\otimes|b\rangle\).

Function Name

Docstrings

Examples

Unit Tests

Tutorials

basis

      ✅

    ✅

    ✅

    ❌

basisBra

      ✅

    ✅

    ✅

    ❌

zerosKet

      ✅

    ✅

    ❌

    ❌

zerosMat

      ✅

    ❌

    ❌

    ❌

completeBasis

      ✅

    ✅

    ✅

    ❌

superPos

      ✅

    ✅

    ✅

    ❌

densityMatrix

      ✅

    ✅

    ✅

    ❌

normalise

      ✅

    ✅

    ✅

    ❌

compositeState

      ✅

    ✅

    ❌

    ❌

completeBasisMat

      ✅

    ✅

    ❌

    ❌

weightedSum

      ✅

    ❌

    ❌

    ❌

mat2Vec

      ✅

    ✅

    ❌

    ❌

vec2Mat

      ✅

    ✅

    ❌

    ❌

BellStates

      ✅

    ✅

    ✅

    ❌
basis(dimension: int, state: int, sparse: bool = True) → spmatrix | ndarray[source]#

Creates a ket state \(|n=\textrm{state}\rangle := \begin{bmatrix} 0 \\ \vdots \\ 1 \textrm{(nth element)} \\ \vdots \\ 0 \end{bmatrix}_{\textrm{dimension}\times 1}\) for a given dimension with 1 (unit population) at a given row.

Parameters:

  • dimension (int) – dimension of Hilbert space

  • state (int) – row to place 1, i.e. index for the populated state

  • sparse (bool) – if True(False), the returned Matrix type will be sparse(array)

Returns:

requested ket state

Return type:

Matrix

Examples

>>> print(basis(2, 0))
(0, 0)      1

>>> basis(2, 0, sparse=False)
[[1]
 [0]]
completeBasis(dimension: int, sparse: bool = True) → List[spmatrix | ndarray][source]#

Creates a complete basis of ket states \(\{|n\rangle\}\), st \(\sum_n|n\rangle\langle n| = \hat{\mathbb{I}}\).

Parameters:

  • dimension (int) – dimension of Hilbert space

  • sparse (bool) – if True(False), the returned Matrix types will be sparse(array)

Returns:

a list (complete basis) of ket states

Return type:

matrixList

Examples

>>> completeBasis(2, sparse=False)
[array([[1],
        [0]], dtype=int64),
 array([[0],
        [1]], dtype=int64)]
basisBra(dimension: int, state: int, sparse: bool = True) → spmatrix | ndarray[source]#

Creates a bra state \(\langle n| := |n\rangle^{T}\) for a given dimension with 1 (unit population) at a given column. This function simply returns transpose of basis.

Parameters:

  • dimension (int) – dimension of Hilbert space

  • state (int) – column to place 1, i.e. index number for the populated state

  • sparse (bool) – if True(False), the returned Matrix type will be sparse(array)

Returns:

requested bra state

Return type:

Matrix

Examples

>>> print(basisBra(2, 0))
(0, 0)      1

>>> basisBra(2, 0, sparse=False)
[[1 0]]
zerosKet(dimension: int, sparse: bool = True) → spmatrix | ndarray[source]#

Creates a column matrix (ket) with all elements zero.

Parameters:

  • dimension (int) – dimension of Hilbert space

  • sparse (bool) – boolean for sparse or not (array)

Returns:

ket of zeros

Return type:

Matrix

Examples

>>> print(zerosKet(2))
(0, 0)      0

>>> zerosKet(2, sparse=False)
[[0]
 [0]]
zerosMat(dimension: int, sparse: bool = True) → spmatrix | ndarray[source]#

Creates a square matrix with all elements zero.

Parameters:

  • dimension (int) – dimension of Hilbert space

  • sparse (bool) – boolean for sparse or not (array)

Returns:

Square matrix of zeros

Return type:

Matrix

Examples

TODO

weightedSum(summands: Iterable, weights: Iterable = None) → Any[source]#

Weighted sum \(\sum_{x}w_{x}x\) of given list of summands \(\{x\}\) and weights \(\{w_{x}\}\).

Parameters:

  • summands (Iterable) – List of matrices

  • weights (Iterable) – List of weights

Returns:

weighted sum

Return type:

Any

Examples

# TODO

superPos(dimension: int, excitations: Dict[int, float] | List[int] | int, populations: bool = True, sparse: bool = True) → spmatrix | ndarray[source]#

Creates a superposition ket state in various ways.

Given excitations is

1. a dictionary : keys = [k] of the dictionary are the states basis(dimension, k) \(\forall k\), and the values are

1. populations = True : values = \([p_{k}]\) are populations of the corresponding keys. They do not need to sum to 1. The state gets normalised, so these are relative populations.

Output state

\(|ket\rangle = \frac{1}{\sum p_{k}}\sum \sqrt{p_{k}}\) basis(dimension, k)

2. populations = False : values = \([c_{k}]\) are the complex probability amplitudes. The output state gets normalised.

Ouput state

\(|ket\rangle = \frac{1}{\sum c_{k}^{2}}\sum c_{k}\) basis(dimension, k)

  1. a list [k] of N integers corresponding to states basis(dimension, k) \(\forall k\) with equal weights

    Output state

    \(|ket\rangle = \frac{1}{\sqrt{N}}\sum\) basis(dimension, k)

  2. an integer, to create a basis state (equivalent to basis function)

Parameters:

  • dimension (int) – dimension of Hilbert space

  • excitations (supInt (Union of int, list(int), dict(int:float))) – see above

  • populations (bool) – If True (False) dictionary keys are the populations (complex probability amplitudes)

Returns:

requested normalised ket state

Return type:

Matrix

Examples

>>> superPos(2, {0:0.2, 1:0.8}, sparse=False)
[[0.4472136 ]
 [0.89442719]]

>>> superPos(2, [0,1], sparse=False)
[[0.70710678]
 [0.70710678]]

>>> superPos(2, 1, sparse=False)
[[0.]
 [1.]]
densityMatrix(ket: spmatrix | ndarray | List[spmatrix | ndarray], probability: Iterable[Any] = None) → spmatrix | ndarray[source]#

Computes the density matrix for both pure and mixed states.

  1. Given a pure ket \(|\psi\rangle\) state

    Output state

    \(\rho = |\psi\rangle\langle\psi|\)

  2. Given a list of kets states \([|\psi_{i}\rangle]\) and their associated probabilities \([w_{i}]\)

    Output mixed state

    \(\rho = \sum w_{i}|\psi_{i}\rangle\langle\psi_{i}|\) from a list of kets

Parameters:

  • ket (matrixOrMatrixList) – single ket state or list of kets

  • probability (floatList) – list of probabilities (0 to 1) associated with the corresponding list of kets

Returns:

requested density matrix operator

Return type:

Matrix

Examples

>>> ket = basis(2, 0)
>>> print(densityMatrix(ket))
(0, 0)      1

>>> ket = superPos(2, [0,1], sparse=False)
>>> densityMatrix(ket)
[[0.5 0.5]
 [0.5 0.5]]

>>> ket1 = superPos(2, [0,1], sparse=False)
>>> ket2 = basis(2, 0)
>>> densityMatrix([ket1,ket2],[0.5, 0.5])
[[0.75 0.5]
 [0.5 0.25]]
completeBasisMat(dimension: int | None = None, compKetBase: List[spmatrix | ndarray] | None = None, sparse: bool = True) → List[spmatrix | ndarray][source]#

Creates a set of density matrices \(\{|n\rangle\langle n|\}\) st \(\sum_n|n\rangle\langle n| = \hat{\mathbb{I}}\) for a given dimension or convert a ket basis \(\{|n\rangle\}\) to density matrix.

NOTE: This is not a complete basis for n-by-n matrices but for populations, i.e. diagonals.

For a given basis, this keeps the sparse/array as sparse/array.

Parameters:

  • dimension (int or None) – dimension of Hilbert space (or default None if a ket basis is given)

  • compKetBase (matrixList or None) – a complete ket basis (or default None if dimension is given)

  • sparse (bool) – if True(False), the returned Matrix type will be sparse(array)

Returns:

  • matrixList – a list (complete basis) of density matrices

  • raises ValueError : raised if both complete ket basis and dimension are None (default). Dimension is used to create

Examples

>>> completeBasisMat(dimension=2, sparse=False)
[array([[1, 0],
        [0, 0]], dtype=int64),
 array([[0, 0],
        [0, 1]], dtype=int64)]
normalise(state: spmatrix | ndarray) → spmatrix | ndarray[source]#

Function to normalise any state (ket or density matrix).

For ket states \(|\psi\rangle\)

\(\frac{1}{norm(|\psi\rangle)}|\psi\rangle\)

For density matrices \(\rho`\)

\(\frac{1}{trace(\rho)}\rho\)

Keeps the sparse/array as sparse/array

Parameters:

state (Matrix) – state to be normalised

Returns:

normalised state

Return type:

Matrix

Examples

>>> import numpy as np
>>> nonNormalisedKet = np.sqrt(0.2)*basis(2,1) + np.sqrt(0.8)*basis(2,0)
>>> normalise(nonNormalisedKet)
[[0.89442719]
[0.4472136 ]]

>>> nonNormalisedMat = densityMatrix(nonNormalisedKet)
>>> normalise(nonNormalisedMat)
[[0.8 0.4]
[0.4 0.2]]
compositeState(dimensions: List[int], excitations: List[Dict[int, float] | List[int] | int], sparse: bool = True) → spmatrix | ndarray[source]#

Function to create composite ket states. Uses superPos to create individual states and tensorProd to calculate their tensor product.

Parameters:

  • dimensions (intList) – list of dimensions for each sub-system of the composite quantum system

  • excitations (List[supInp]) – list of state information for sub-systems. This list can have mixture of dict, list, and int values, which are used to create a superposition state for the corresponding sub-system See: superPos function

  • sparse (bool) – boolean for sparse or not (array)

Returns:

composite ket state

Return type:

Matrix

Examples

>>> compositeState(dimensions=[2, 2], excitations=[0,1], sparse=False)
[[0]
 [1]
 [0]
 [0]]

>>> compositeState(dimensions=[2, 2], excitations=[[0,1],1], sparse=False)
[[0.        ]
 [0.70710678]
 [0.        ]
 s[0.70710678]]

>>> compositeState(dimensions=[2, 2], excitations=[0,{0:0.2, 1:0.8}], sparse=False)
[[0.4472136 ]
 [0.89442719]
 [0.        ]
 [0.        ]]
mat2Vec(denMat: spmatrix | ndarray) → spmatrix | ndarray[source]#

Converts density matrix into density vector (used in super-operator representation).

Keeps the sparse/array as sparse/array

Parameters:

denMat (Matrix) – density matrix to be converted

Returns:

density vector

Return type:

Matrix

Examples

>>> denMat = densityMatrix(ket=basis(dimension=2, state=1, sparse=True))
>>> mat2Vec(denMat=denMat).toarray()
[[0]
 [0]
 [0]
 [1]]
vec2Mat(vec: spmatrix | ndarray) → spmatrix | ndarray[source]#

Converts density vector into density matrix.

Keeps the sparse/array as sparse/array

Parameters:

  • vec (Matrix) – density vector to be converted

  • Matrix – density matrix

Examples

>>> denMat = densityMatrix(ket=basis(dimension=2, state=1, sparse=True))
>>> print(denMat.toarray())
[[0 0]
 [0 1]]

>>> denVec = mat2Vec(denMat=denMat)
>>> vec2mat(vec=denVec).toarray()
[[0 0]
 [0 1]]
BellStates(bs: str = 'Phi+', sparse: bool = True) → spmatrix | ndarray[source]#

Creates a Bell state \(\begin{cases} |\Phi^{+}\rangle := \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle) \\ |\Phi^{+}\rangle := \frac{1}{\sqrt{2}}(|00\rangle - |11\rangle) \\ |\Psi^{-}\rangle := \frac{1}{\sqrt{2}}(|01\rangle + |10\rangle) \\ |\Psi^{+}\rangle := \frac{1}{\sqrt{2}}(|01\rangle - |10\rangle) \\ \end{cases}\), where \(|ab\rangle := |a\rangle\otimes|b\rangle\).

Parameters:

  • bs (str, optional) – String for different Bell states, by default ‘Phi+’. Options are [‘Phi+’ or ‘00’, ‘Phi-’ or ‘01’, ‘Psi+’ or ‘10’, ‘Psi-’ or ‘11’]

  • sparse (bool) – if True(False), the returned Matrix type will be sparse(array)

Returns:

Bell state

Return type:

Matrix

Examples

>>> BellStates('Phi+').toarray()
array([[0.70710678],
       [0.        ],
       [0.        ],
       [0.70710678]])
>>> BellStates('Phi-').toarray()
array([[ 0.70710678],
       [ 0.        ],
       [ 0.        ],
       [-0.70710678]])
>>> BellStates('Psi+').toarray()
array([[0.        ],
       [0.70710678],
       [0.70710678],
       [0.        ]])
>>> BellStates('Psi-').toarray()
array([[ 0.        ],
       [ 0.70710678],
       [-0.70710678],
       [ 0.        ]]
purity(denMat: spmatrix | ndarray) → float[source]#

Calculates the purity \(Tr(\rho^{2})\) of a given density matrix \(\rho\)

Parameters:

denMat (Matrix) – Density matrix

Returns:

the purity of given density matrix.

Return type:

float
