[1]:

import quanguru as qg

# QuanGuru uses sparse matrices by default,
# but sparse matrices are not easily readable when we print them
# so, in below examples, we use .A to print them as arrays

1 - Hamiltonian of a single quantum system#

This tutorial demonstrates how to describe the Hamiltonian of a quantum system in QuanGuru. Note that the Hamiltonians created by QuanGuru take $h = 1$ and uses frequencies (instead of angular-frequencies) by default. We show how to change these default settings in a later tutorial.

Let’s start with a very simple Hamiltonian (with $h = 1$ )

$H = f\hat{O}$

Here, the relevant information are

frequency : $f$ , which is a float
operator : $\hat{O}$ (we will omit the hat from the operator when they are clear from the context)
dimension : of the operator, which is an integer

In QuanGuru, we create a quantum system using the QuantumSystem object, which requires at least one of these information during instantiation.

frequency and dimension are simply numbers, and for the operator, we use the functions in QuantumToolbox operators module. However, any function (from any other library) that creates and returns the matrix representation of the desired operator can be used, because the QuantumSystem object just requires the function reference.

Let’s give some concrete examples.

1 - Qubit#

For a qubit:

dimension = 2
frequency = # any number we want (say, $f=2$ )
operator can be any (Hermitian) operator we want, but it is usually the $\sigma_{z}$ operator (Pauli-z operator)

Then, the Hamiltonian would be

$H = f*\sigma_{z} = 2\left[\begin{array}{ll}1 & 0 \\ 0 & -1\end{array}\right] = \left[\begin{array}{ll}2 & 0 \\ 0 & -2\end{array}\right]$

and we can create this system as below

[2]:

qub = qg.QuantumSystem(dimension=2, frequency=2, operator=qg.sigmaz)

print(qub.totalHamiltonian.A)

[[ 2  0]
 [ 0 -2]]

Notice that the operator of the QuantumSystem is the function qg.sigmaz (from QuantumToolbox), and it does not have the parenthesis qg.sigmaz(), which would invoke/call the function to create the matrix form of the operator. Make sure to pass the function without the parenthesis. The QuantumSystem objects call these functions in the background to create the matrices.

2 - Larger spins#

Qubit object is equivalent to a spin-1/2 system, and we can create any other spin system using the J_{x/y/z} operators from the QuantumToolbox.

Let’s create a spin-1 system, which means

dimension = 3
frequency = # any number we want (say, $f=2$ )
operator is usually the $J_{z}$ operator

Then, the Hamiltonian would be

$H = f*J_{z} = 2\left[\begin{array}{lll}1 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & -1\end{array}\right] = \left[\begin{array}{llll}2 & 0 & 0 \\ 0 & 0 & 0 \\ 0 & 0 & -2\end{array}\right]$

[3]:

spin1 = qg.QuantumSystem(dimension=3, frequency=2, operator=qg.Jz)

print(spin1.totalHamiltonian.A)

[[ 2.  0.  0.]
 [ 0.  0.  0.]
 [ 0.  0. -2.]]

3 - Harmonic oscillator#

This is an infinite dimensional system, but we can use a truncated space by setting the dimension to a finite value (which should be large enough for your simulations, but its discussion is beyond this tutorial). For an Harmonic oscillator, we have

dimension = 5 (a small number so that printed matrix is readable)
frequency = # any number we want (say, $f=2$ )
operator is usually the $a^{\dagger}a = n$ number operator

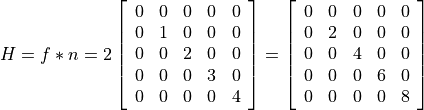

Then, the Hamiltonian would be

$H = f*n = 2\left[\begin{array}{lllll}0 & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 2 & 0 & 0 \\ 0 & 0 & 0 & 3 & 0 \\ 0 & 0 & 0 & 0 & 4 \end{array}\right] = \left[\begin{array}{lllll}0 & 0 & 0 & 0 & 0 \\ 0 & 2 & 0 & 0 & 0 \\ 0 & 0 & 4 & 0 & 0 \\ 0 & 0 & 0 & 6 & 0 \\ 0 & 0 & 0 & 0 & 8 \end{array}\right]$

[4]:

ho = qg.QuantumSystem(dimension=5, frequency=2, operator=qg.number)

print(ho.totalHamiltonian.A)

[[0 0 0 0 0]
 [0 2 0 0 0]
 [0 0 4 0 0]
 [0 0 0 6 0]
 [0 0 0 0 8]]

Special classes for common system#

The above systems are quite common. Therefore, QuanGuru provides special classes for these systems, and these classes comes with default values for some of the above attributes:

Spin class for spin systems, which also provides an attribute named jValue (for spin value) so that we can use spin number instead of dimension. It comes with the default operator = qg.Jz
Qubit class for a qubit, and its a special case of Spin class with dimension = 2 by default. This means that its operator is qg.Jz by default, not qg.sigmaz. This operator choice is discussed in later tutorials.
Cavity class for harmonic-oscillator/cavity/resonator, and it defaults operator = qg.number

[5]:

spin1_usingDimension = qg.Spin(dimension=3, frequency=2)
spin1_usingjValue = qg.Spin(jValue=1, frequency=2)

print(spin1_usingDimension.totalHamiltonian.A)
print(spin1_usingjValue.totalHamiltonian.A)

print(spin1_usingDimension.dimension, spin1_usingDimension.jValue)
print(spin1_usingjValue.dimension, spin1_usingjValue.jValue)

[[ 2.  0.  0.]
 [ 0.  0.  0.]
 [ 0.  0. -2.]]
[[ 2.  0.  0.]
 [ 0.  0.  0.]
 [ 0.  0. -2.]]
3 1.0
3 1.0

[6]:

qb = qg.Qubit(frequency=2)

print(qb.totalHamiltonian.A)
print(qb.dimension, qb.jValue)

[[ 1.  0.]
 [ 0. -1.]]
2 0.5

[7]:

cav = qg.Cavity(dimension=5, frequency=2)

print(cav.totalHamiltonian.A)

[[0 0 0 0 0]
 [0 2 0 0 0]
 [0 0 4 0 0]
 [0 0 0 6 0]
 [0 0 0 0 8]]
